4 Hi Cold Rolling Mill
1000000.00 INR/Piece
Product Details:
- Type Cold Rolling Mill
- Material Carbon Steel
- Automatic Grade Automatic
- Click to View more
X
4 Hi Cold Rolling Mill Price And Quantity
- 1000000.00 INR/Piece
- 1 Piece
4 Hi Cold Rolling Mill Product Specifications
- Cold Rolling Mill
- Automatic
- Carbon Steel
4 Hi Cold Rolling Mill Trade Information
- 1 Piece Per Week
- 3 Months
Product Description

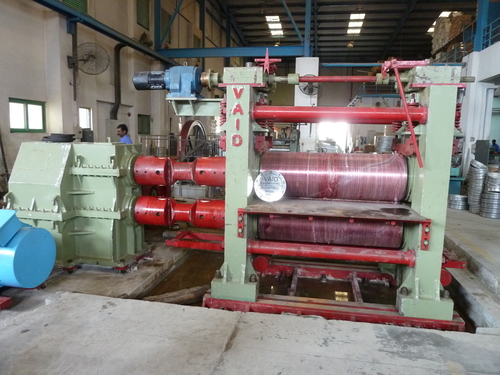

4 Hi Cold Rolling Mill
We are one of the well established & prominent manufacturers and exporters of 4 Hi Cold Rolling Mill. We have well equipped manufacturing unit where we manufacture these machines in compliance with industrial standards using modern techniques. Available in diverse specifications, these rolling machines are immensely used to roll down aluminum sheets in different thickness. Our offered 4 Hi Cold Rolling Mill is popular in the market due to its easy installation, rust proof finish and long functional life.
Further Details:
The mills are custom designed depending on the material being rolled, thickness and width requirements, production capacity, mode of operation and other inputs.
Features
The salient features of these mills are as follows:
- Heavily reinforced Stand Housings machined to closest tolerances (Window Size within 0.04 mm)
- Back Up Rolls made of forged alloy steel having hardness in range of 54-58 HRC
- Back Up Roll running on Spherical Roller Bearings fitted in C-45 grade steel cast housings
- Work Rolls made of forged Alloy steel having high hardness of 62+ HRC as required
- Motorised worm geared Screw Down with Bronze Nut & Buttress threaded Alloy Steel Screw.
- Extra heavy duty Gear Box & Pinion Stand with hardened output shafts
- Roll removal trolley system for easy replacement of Rolls
- AGC for accurate thickness control (optional)
Application
- Metal industry
- Rolling mills
Product details
|
Billets thickness |
0.45 - 20 mm |
|
Billets width |
200 - 1100 |
|
Hi |
4 |
|
Output thickness |
2 mm to 0.15 mm |
|
Roller diameter |
170 - 510 |
|
Roller length |
300 - 1200 |
|
Strip widths |
200 mm to 1400 mm |
|
Material |
Low And Medium Carbon Steel |
